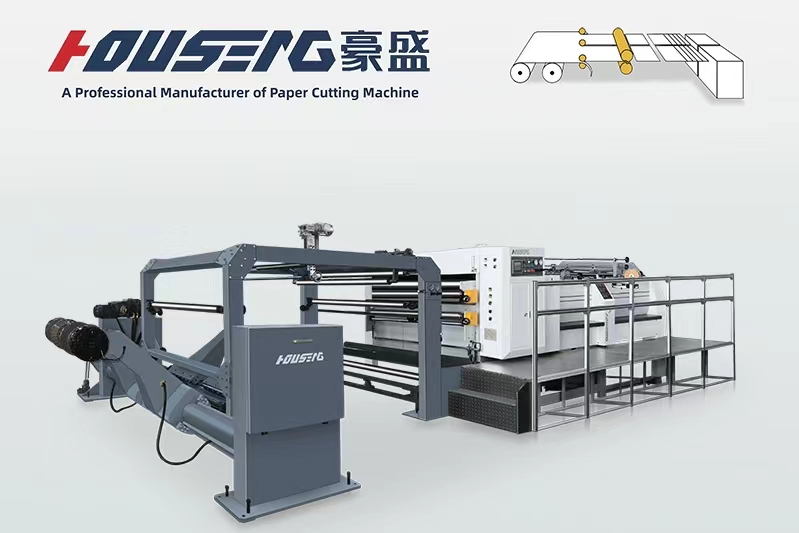

HS-1400-1 One Roll Paper Sheeter Cutter Machine

Details Specifications:

Paper cutting mode: upper knife back-cutting, lower knife fixed
Paper application range: 50-550g
Max roll paper diameter: 1800mm(71”)Max
Max paper width: 1400mm/1700mm
Total power: 28kw
Cutting length: 400-1450mm/400-1650mm
Cutting accuracy: +/-0.3mm
Air pressure power requirement: Max.5.5kg/cm2x5m3/min) (23kw)
Total weight: 14.000kgs/16.000kgs

1.

The upper knife roller adopts the English knife method to reduce the load and noise of the knife when extending the knife life. The steel plate welding is precisely processed and dynamically balanced, which effectively reduces the vibration and noise of high-speed operation. The rotary cutting knife is made of special alloy steel with precision processing, long service life, and easy blade adjustment. The safety cover will automatically close after opening to ensure safety.

2.Dual position shaftless pivot unwinder

1) Maximum reel diameter: 1800mm

2) Maximum reel width: 1100mm/1400mm/1700mm/1900mm

3) Minimum reel width: 300mm

4) Core size: 3"6"12" (optional mechanical chuck)

5) Hydraulic drive: 3.5kw

6) Clamp arm forward or backward movement driven by hydraulic

7) Clamp arm up or down driven by hydraulic

8) Pneumatic brake system

9) Roller with associated bracket

3.Slitting knife

Three sets of slitting knife units have high-speed, smooth and powerless trimming and slitting,

With quick adjustment and locking functions.

High rigidity knife holder is suitable for 300m/min high-speed slitting.

4.Electric double curler system

Effectively removes curling of the roll, making the paper flatter and more conducive to stable paper roll tension,

Allows the machine to run almost thick boards up to 200-500gsm
