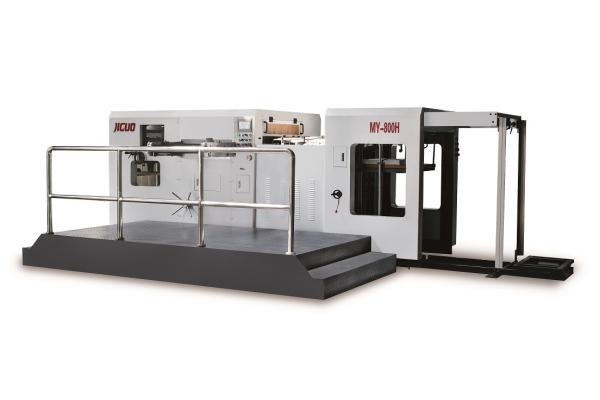

MY-800H Automatic Die-cutting & Creasing Machine

Specifications

Advantages of our die-cutting machine:

1.Paper Feeding Unit

• The enlarged paper feeding head (Feeder head) has 9 suction nozzles applicable for paper in different thicknesses and 5 paper feeding nozzles which can be independently adjusted for parallel paper feeding. It also has 4 paper lifting nozzles which can move up and down in a large stroke especially applicable for small corrugated paper. The large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably.
• By the special secondary paper feeding and preliminary paper stacking, the primary and secondary can be shifted to ensure uninterrupted paper feeding.

• To improve the working efficiency, paper feeding and collecting are realized by Taiwan Chenggang dual-speed reduction motor which provides a long service life and a high torsional force, and it saves time due to its high lowering speed.

2.Paper Conveying Unit

• The paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying.
• The incline-type paper moving table top is more suitable to high-speed thin paper and location.

Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper.

3.Main Chain:

The main chain of toothpicks are all imported original German IWIS high-quality chain, made in Germany.

4.Die Cutting Unit

• The cast wall plate is rejected because of its low pulling force but high deformation, and steel wall plate is applied like Japan machines. The pulling force is enlarged, i.e. the pressing force is enlarged, and it becomes firm and endurable without any deformation.
• This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.
• The oil route is forcibly lubricated by a HP oil pump as made in Taiwan to reduce wearing, an oil cooler is added to cool the lubricating oil, and the main chain is lubricated timely to improve the operation efficiency.
• The novel transmission mechanism provides high speed die-cutting, and the highly precise swing link platform improves the padding speed (almost without padding), as it is known the pressure can be hardly balanced in most of other common machines.
• The pneumatic plate locking unit can fix the upper frame more firmly and faster. In our die-cutting machine, the front, back, left and right are pneumatically locked simultaneously to realize a high correctness and a high speed. However, common machines are tightened by screws.

SINO-JIGUO Printing Machinery Co., LTD., founded in 1996, is a high-tech enterprise started jointly by a number of senior engineers, and is located in the central area of YuTian County within the golden triangle economic zone consisted by Beijing, Tianjin and Tangshan city with 42.81 mu area covered. Our company has a technical team consisting of 160 elite personnel who contribute to our strong technical power, high level skills of design, assembly and manufacturing, perfect management system and advanced processing and testing equipment. Our company is specialized in production of post-print paper packaging equipment, and has established long-term scientific cooperation for die-cutting machine schemes with the Beijing Institute of Graphic Communication. The company is a modern enterprise incorporating the design, research and development, sales and service.
